Rigging Hooks: A Guide to Types and Applications
Rigging Hooks: A Guide to Types and Applications
Rigging hooks play a crucial role in a wide range of industries, providing a secure and efficient means of lifting and moving heavy loads. Whether you’re involved in construction, manufacturing, or any field that requires material handling, understanding the various types of rigging hooks and their specific applications is essential for maintaining safety and optimizing productivity. In this blog post, we will take a look at the most commonly used hooks, exploring their diverse designs and highlighting some of their unique features. Join us as we unravel the mystery behind these essential tools and discover how they can revolutionize your lifting operations.

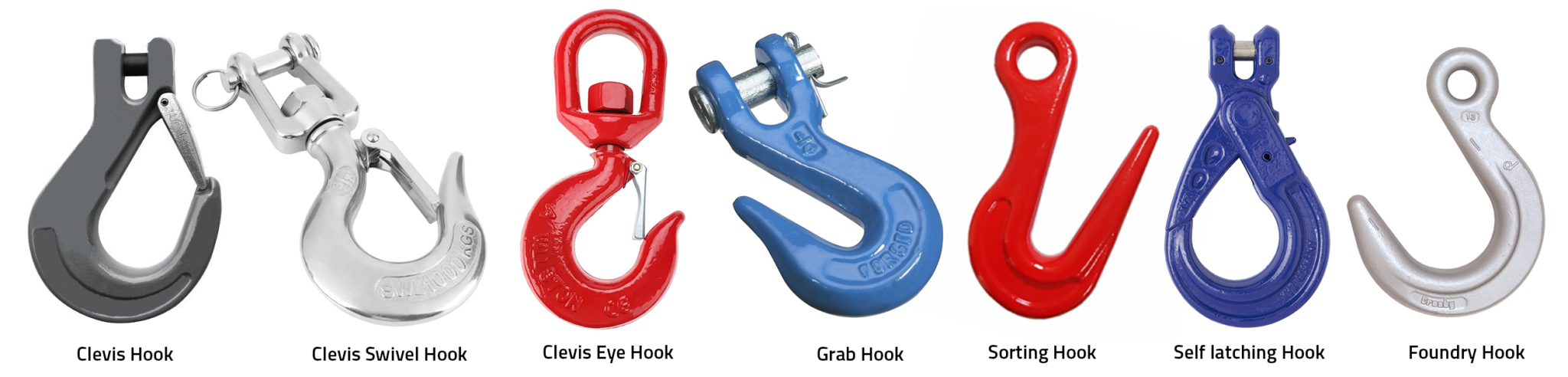

I. Clevis Hook
The clevis hook is one of the most widely recognized types of rigging hooks. It features a U-shaped design with a latch that secures the load. Clevis hooks come in various sizes and capacities, making them suitable for a range of lifting applications. From hoisting heavy machinery to securing cargo during transportation, clevis hooks provide versatility and reliability.
II. Swivel Hook
Swivel hooks offer enhanced maneuverability due to their rotating feature. This type of rigging hook can pivot up to 360 degrees, allowing for smoother and more precise load positioning. Swivel hooks are particularly beneficial in situations where loads need to be rotated or turned during lifting operations. They are commonly used in construction, shipbuilding, and offshore industries.
III. Sling Hook
Sling hooks, also known as grab hooks, are specifically designed for use with lifting slings. Their unique shape and throat opening facilitate the secure attachment of slings and provide excellent grip on the load. Sling hooks are suitable for applications that involve lifting objects with straps, chains, or wire ropes. From transporting heavy containers to rigging beams, sling hooks ensure a reliable connection between the sling and the load.
IV. Eye Hook
Eye hooks, as the name suggests, have an eye-shaped opening at the top, allowing for easy attachment to lifting devices such as chains or ropes. Their versatility makes them suitable for a wide range of lifting operations, including overhead lifting, rigging equipment, and suspending loads. Eye hooks are available in various configurations, such as swivel eyes or self-locking eyes, providing flexibility and convenience in different scenarios.
V. Grab Hook
Grab hooks, also known as claw hooks, feature a unique design with sharp, curved edges that resemble claws. This type of rigging hook is specifically designed to securely grasp objects with irregular shapes or uneven surfaces. Grab hooks are commonly used in industries like forestry, logging, and salvage operations, where the ability to grip objects firmly is paramount.
It is crucial to be mindful of the manufacturer’s specified reductions in the working load limit (WLL) when utilizing a standard-style grab hook. In typical usage configurations, most manufacturers require a 20% reduction in the WLL for standard grab hooks. This reduction is essential to ensure safe and reliable operation during lifting operations. Always refer to the manufacturer’s guidelines and recommendations to determine the appropriate WLL for your specific usage scenario.
VI. Sorting Hooks
Sorting hooks, also referred to as “lay out hooks” or “shake out hooks,” play a vital role in sorting and laying out various products, including flat plates, pipes, or other tube-shaped objects. These hooks are commonly used as part of multi-leg sling assemblies in situations where the object or item being lifted requires full engagement with the throat of the hook.
To ensure optimal performance and safety, sorting hooks must be used at an angle ranging from 30° to 45°. This angle allows for the load to fully engage with the throat opening of the hook. It’s important to note that if the load does not achieve full engagement, a significant reduction in the Working Load Limit (WLL) of the hook can occur.
Unlike many other types of hooks, sorting hooks are designed without a latch. This deliberate omission is due to the specific requirements of lifting plates and cylindrical loads, where complete throat engagement is necessary. The use of a latch would limit the practicality of the hook in such scenarios.
VII. Self Locking Hook
A self locking hook incorporates a robust and well-engineered latch as an integral component. The main advantage of a self locking hook is its exceptional durability and reliability. These hooks are designed in a way that makes it extremely difficult to break the latch, providing enhanced safety during lifting operations. Once the latch closes, it remains securely locked until the load is released from the hook, ensuring a strong and stable connection.
Self locking hooks are commonly found on chain slings due to their superior strength and ability to withstand heavy-duty environments. They are particularly well-suited for lifting applications where chain slings are preferred. The robust nature of positive latching hooks enables them to handle the demands of challenging lifts and harsh operating conditions with ease.
In addition to the previously mentioned types of rigging hooks, there exists a specialized type known as foundry hooks, specifically designed to tackle the unique challenges found within the demanding environment of foundries.
Foundry hooks, typically used in high-heat applications within the foundry industry, are commonly designed without a latch. The absence of a latch is due to the potential danger posed to individuals when reaching up to connect or remove loads from the hook in such environments.
It’s important to note that foundry hooks are frequently employed in applications where tip loading is required. However, it’s essential for users to be mindful that tip loading reduces the Working Load Limit (W.L.L.) of the hook. Therefore, it is crucial to ensure that the load is properly retained within the hook. Always consult the manufacturer’s specific guidelines for the appropriate reduction in W.L.L. during tip loading scenarios. By following these guidelines, operators can maintain a safe working environment while utilizing foundry hooks effectively.
Wrapping things up
Rigging hooks come in a wide array of designs and configurations, each catering to specific lifting needs and load requirements. By understanding the various types of rigging hooks and their applications, you can ensure the safety of your lifting operations and maximize efficiency. From the classic clevis hook to the specialized grab hook, each type offers distinct features that can revolutionize your material handling processes.
Remember, when selecting a rigging hook, it is essential to consider factors such as load capacity, material compatibility, and the environment in which it will be used. Always adhere to the manufacturer’s guidelines and industry standards to ensure the proper usage of rigging hooks.
Stay up-to-date with industry advancements and regulations. New innovations and improvements are constantly being made to ensure better performance, durability, and safety. Regularly assess your equipment and replace any hooks that show signs of wear or damage
Rigging hooks are the unsung heroes of material handling, silently supporting heavy loads and ensuring the smooth flow of operations in various industries.
——————————————————————————————————————————————
